● Small luminous point, leaving more space for optical and structural design.
● Model can be customized, providing multi wavelength and category.

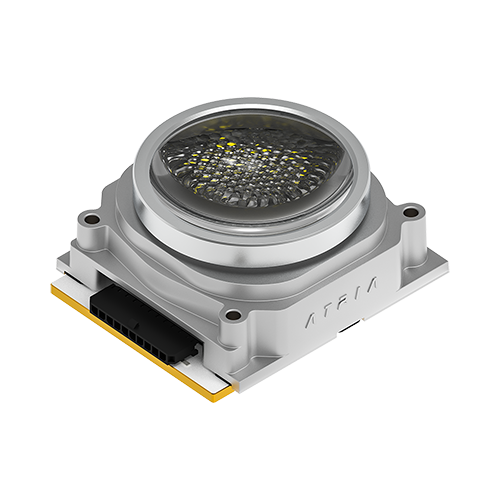

● The 210W LED module, combined with a 9mm optical fiber, can achieve an illumination of up to 17 million lux at a working distance of 20mm.
● Suitable for machine vision products such as point light sources, line light sources, and light source machines.
| Type | Input Power(W) | Product | Model | CCT/ Wavelength | Typical Flux(lm) | Focal length and spot diameter(mm) |
| White LED | 90W | SUL90 | SUL90-63-R00-000 | 6,300K(±400) | 5,700 | 14 * Φ5 |
| 450W | SUL450N | SUL450N-80-R00-011 | 8,000K | 25,000 | 45 * Φ13 | |
| 450W | SUL450(Blue light) | SUL450N-455-R00-011 | 455nm | TBD | 45 * Φ13 | |
| Single color LED | 210W | SUL210N(White light) | SUL210N-80-R00-000 | 8,000K(±500) | 12,000 | 31 * Φ9 |
| 210W | SUL210N(Blue light) | SUL210N-470-R00-000 | 470nm | 3,100 | 31 * Φ12 | |
| 210W | SUL210N(Green light) | SUL210N-525-R00-000 | 525nm | 8,300 | 31 * Φ12 | |
| 210W | SUL210N(Red light) | SUL210N-625-R00-000 | 625nm | 3,300 | 31 * Φ12 | |
| Multi-color LED | 50W | FHL50-3C | FHL50-3C-R00-104 | R/G/B | 270/1,900/130 | 19 * Φ6 |
| 200W | MV200-3C | MV200-3C-R00-000 | R/G/B | 1,100/4,800/560 | 12.7 * Φ7 | |
| Poiont light soure | / | MV10-D08(White light) | MV10-65-R00-D08 | 6,500K | / | / |
| / | MV10-D08(Blue light) | MV10-455-R00-D08 | 440-460m | / | / | |
| / | MV10-D08(Red light) | MV10-623-R00-D08 | 620-625nm | / | / | |
| Line light source | / | MV480 | MV480-65-R00-H50 | 6,500K | / | / |
